Arduino Mega 2560 16U2

₹ 1,000.00 ₹ 1,000.00

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

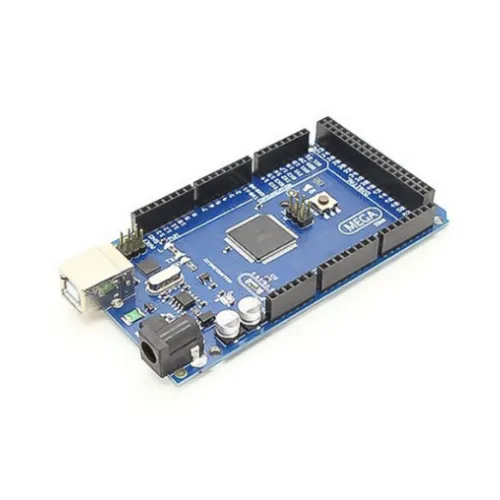

Mega 2560 ATmega2560-16U2 Board without USB Cable for Arduino

Mega 2560 Arduino follows Open-source principles, which means you can freely download the development environment and many associated resources.

Ideal for project work and often used in schools, teaching, motor control, robotics and similar applications; the Arduino platform allows for rapid application development using either Java (cross-platform) or Processing (a C derivative used to write sketches using Arduino IDE downloadable from Arduino.cc website.)

Input voltage should be limited to 6 ~ 12V, but if the voltage supplied is less than 6V, I/O port may not be supplied to a voltage of 5V, and therefore readings may become unstable. If the voltage is greater than 12V, the regulator device may overheat causing damage to the control board. It is therefore recommended that you supply between 6.5 and 12V, utilizing typical power supplies of 7.5V or 9V.

Why Consider the Official Boards?

FeatureOfficial Arduino BoardsClone Boards
Warranty✔ 1-Year Official Warranty✖ None / Limited
Build Quality✔ High-Grade Components⚠ Varies
Software Support✔ 100% Compatible⚠ May Face Issues
Firmware Updates✔ Regular Official Releases✖ Rare / None
Durability✔ Long Lifespan & Support⚠ Shorter Life

Features

  1. ATmega2560 Microcontroller

  2. Boot-loader to allow downloading of sketches via USB without having to go through other external writers

  3. Powered from USB or via external PSU (not supplied). The device will automatically switch between power inputs

  4. Heavy gold plate construction

Package Includes

1 x Mega 2560 ATmega2560-16AU Board without USB Cable for Arduino

Product Details

SKU: 14135

  1. 54 digital input / output terminals (14 of which have programmable PWM outputs)

  2. 16 analog inputs

  3. 4 UARTs (hardware serial ports)

  4. 16 MHz crystal clock

  5. Operating voltage: 6 ~ 12V

  6. Dimensions: 110 × 53 × 15 mm

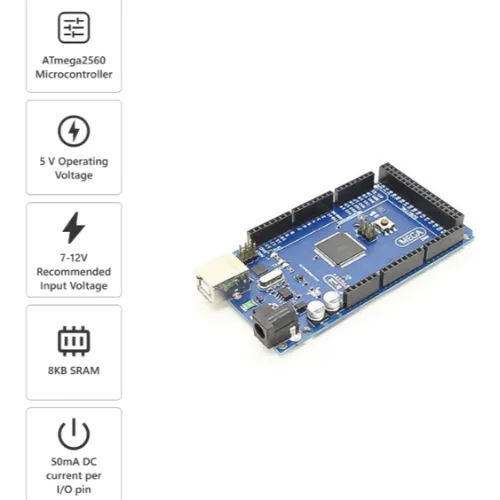

Specifications

• Microcontroller – ATmega2560

• EEPROM – 4KB

• Flash Memory – 256 KB

• SRAM – 8 KB

• PWM Output Pins – 15

• Analog I/O Pins – 16

• Digital I/O Pins – 54 digital input / output terminals (14 of which have programmable PWM outputs)

• DC Current per I/O Pin (mA) – 50

• Architecture – Advanced RISC Architecture

• Clock Speed – 16 MHz

• Input Voltage (Recommended) – 7-12V

• Operating Voltage (VDC) – 5

• Weight – 35 gm

• Dimensions (mm) L × W × H – 110 × 53 × 15

• Shipping Weight – 0.037 Kg

• Shipping Dimensions – 10 × 6 × 5 cm
