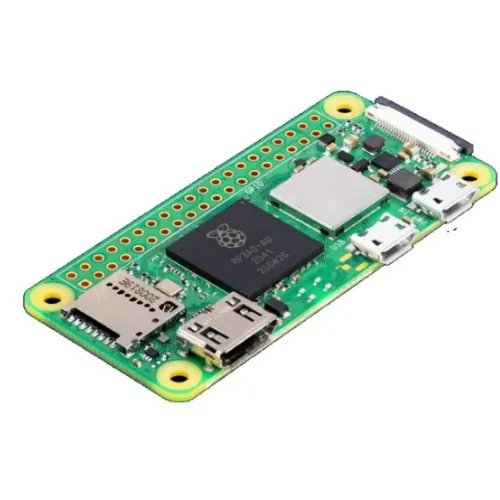

Raspberry Pi Zero 2 W
The Raspberry Pi Zero 2 W is a compact, powerful development board designed for embedded Internet of Things (IoT) projects. It features a 64-bit ARM Cortex-A53 CPU, making it up to four times faster than the original Raspberry Pi while maintaining a small form factor.

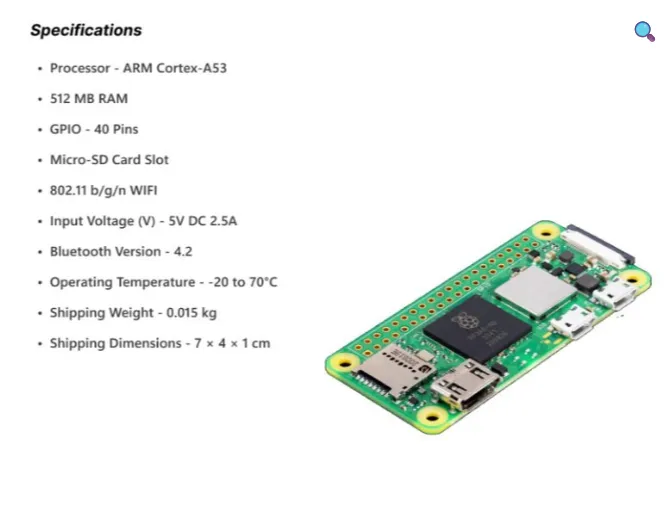

Core Specifications
| Feature | Details |
| Processor | BCM2710A1 die (Cortex-A53) 64-bit SoC @ 1GHz |
| RAM | 512MB LPDDR2 DRAM |
| GPU | VideoCore IV |
| Wireless | 2.4GHz 802.11 b/g/n Wireless LAN |
| Bluetooth | Bluetooth 4.2 / Bluetooth Low Energy (BLE) |
| GPIO | 40-pin header (unpopulated, HAT-compatible) |

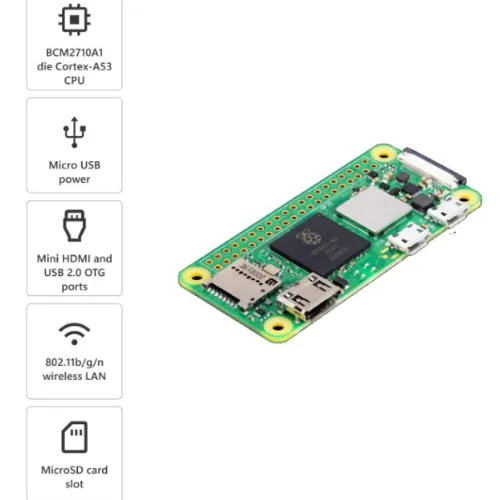

Connectivity & I/O
Storage: MicroSD card slot for operating system and data.
Video Output: Mini HDMI port.
USB: 1 × Micro USB 2.0 OTG port.
Power: 1 × Micro USB port (Recommended: 5V DC 2.5A).
Camera: CSI-2 camera connector.
Extra: Composite video and reset pins accessible via solder test points.
Physical & Environmental
Dimensions: 65mm (L) × 30mm (W).
Shipping Size: $7 \times 4 \times 1$ cm.
Shipping Weight: 0.015 kg.
Operating Temp: -20°C to 70°C.
Package Includes:
1 x Raspberry Pi Zero 2 W
Note: This board is designed to be flexible and compact, utilizing mini connectors and an unpopulated GPIO header to save space for custom projects.
